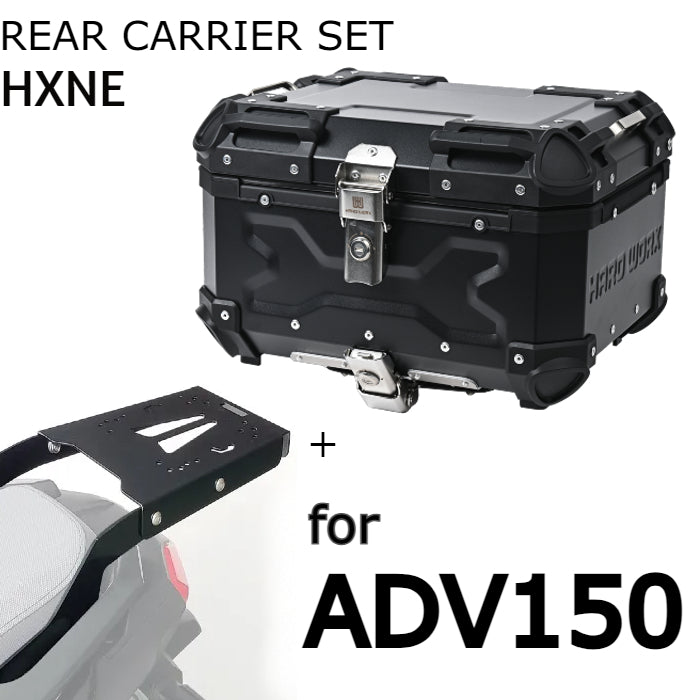

HARD WORX Case & Carrier SET HXNE for HONDA ADV150

Vehicle specific carrier + HARD WORX

Introducing new items from RIDEZ's luggage brand "HARD WORX".
A set of Hard Works and a car-specific rear carrier.
The set includes a rear carrier specific to the vehicle model , making it easy to install.
There are 6 types: 25L black, 25L silver, 36L black, 36L silver, 45L black, and 45L silver.

Compatible model: For HONDA ADV150 only (Compatible model: KF38 )

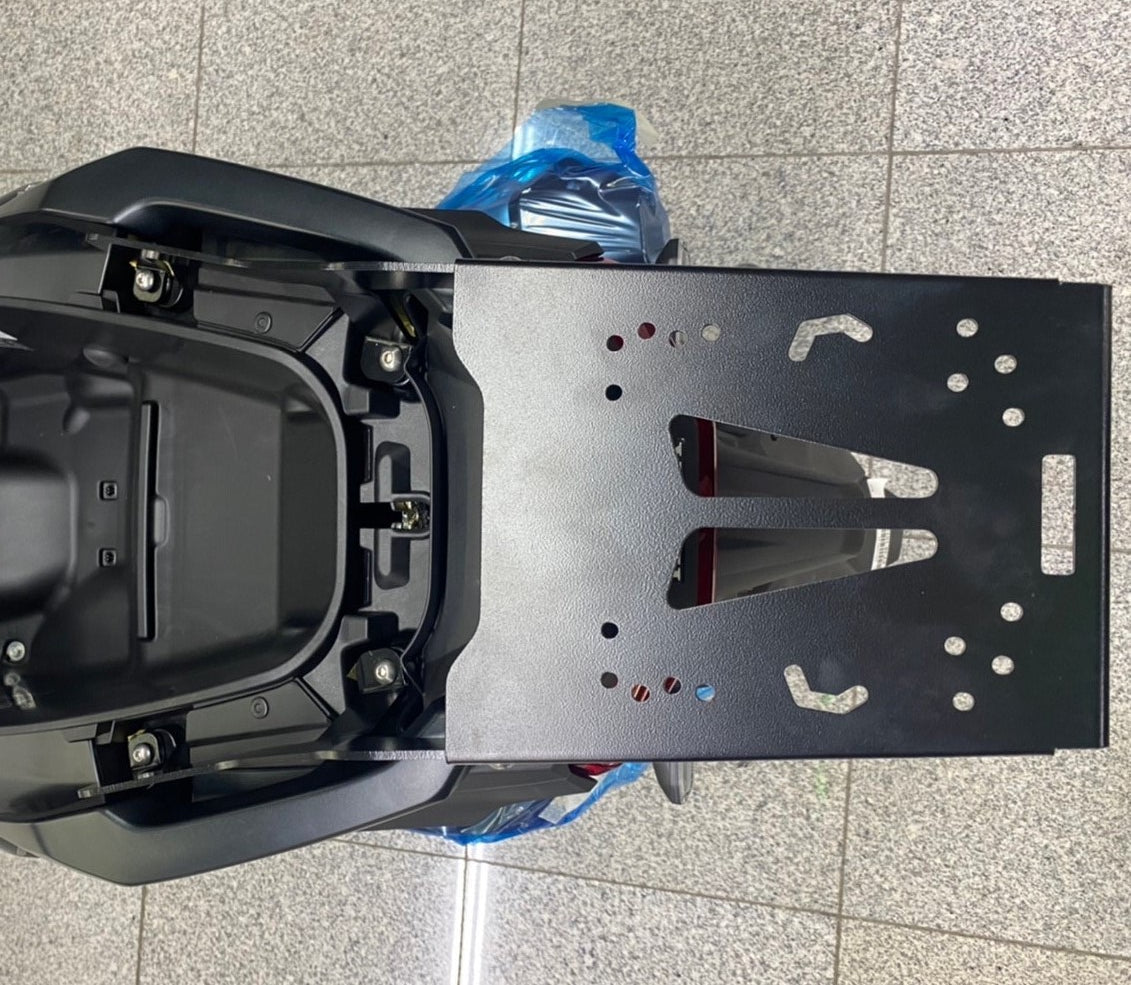

*This is a rear carrier specifically for the vehicle.

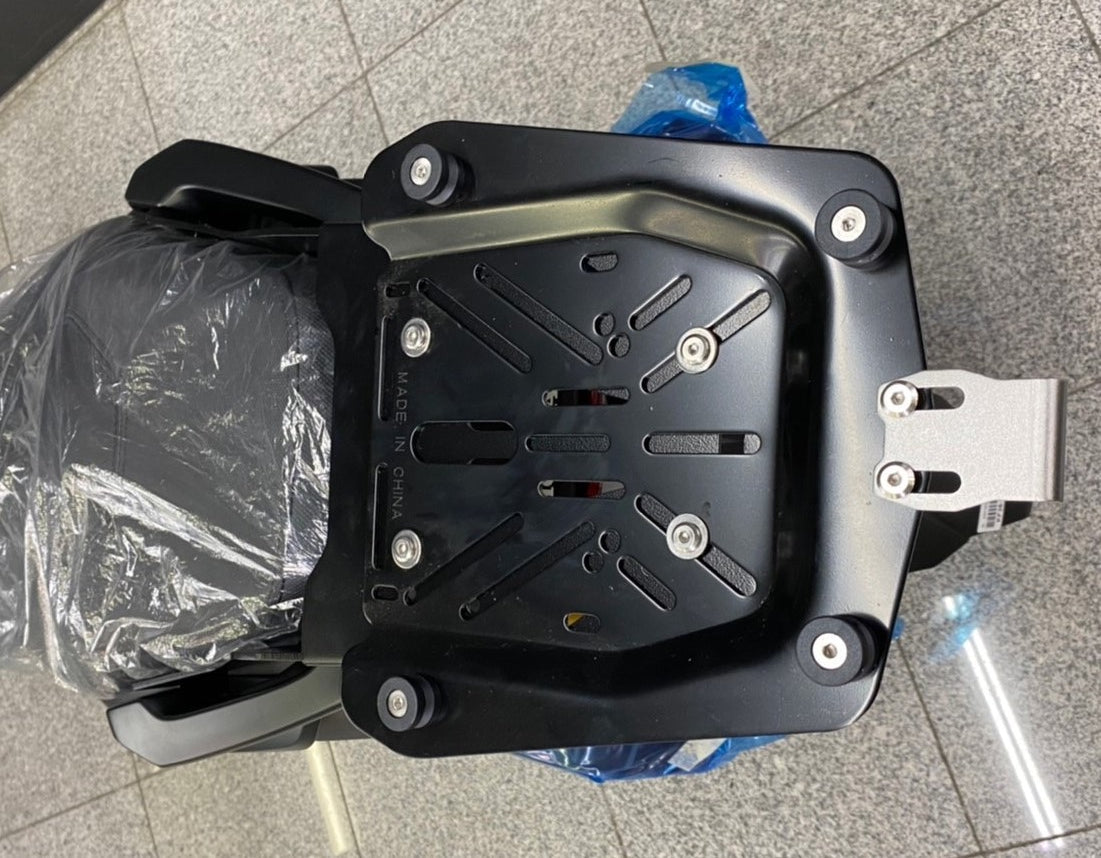

*This is an installation image.
<Products used>・HARD WORX 45L BLACK (old model *no logo model)

<HARD WORX size>

HARD WORX 25L
External dimensions (unit: mm): Width (W) 410 x Depth (D) 330 x Height (H) 195
HARD WORX 36L
External dimensions (unit: mm): Width (W) 410 x Depth (D) 330 x Height (H) 250
HARD WORX 45L
External dimensions (unit: mm) : Width (W) 410 x Depth (D) 330 x Height (H) 305

【Notes】
To maintain quality, the surface of the product has a textured finish with fine embossing throughout. There may be some unevenness due to the manufacturing process. There is no problem in using it. Thank you for your understanding.
The maximum loading capacity of the rear carrier is 15Kg.

For 25 liters: 15kg - 5.7kg (box + base plate) = 9.3kg
For 36 liters 15kg-6.5kg (box + base plate) = 8.5kg
For 45 liters: 15kg-7.5kg (box + base plate) = 7.5kg
Please use the above weight as a guide and pay attention to the loading capacity. This is only the maximum loading capacity of the rear carrier. This does not apply if the load capacity of the vehicle is less than that.

JAN CODE
BLACK 25L (HXNE25B-H01): 4527625123618
BLACK 36L ( HXNE36B-H01): 4527625123632
BLACK 45L (HXNE45B-H01): 4527625123656
SILVER 25 L (HXNE25S-H01): 4527625123625
SILVER 36L (HXNE36S-H01): 4527625123649
SILVER 45L (HXNE45S-H01): 4527625123663
Single carrier: 4527625116290
