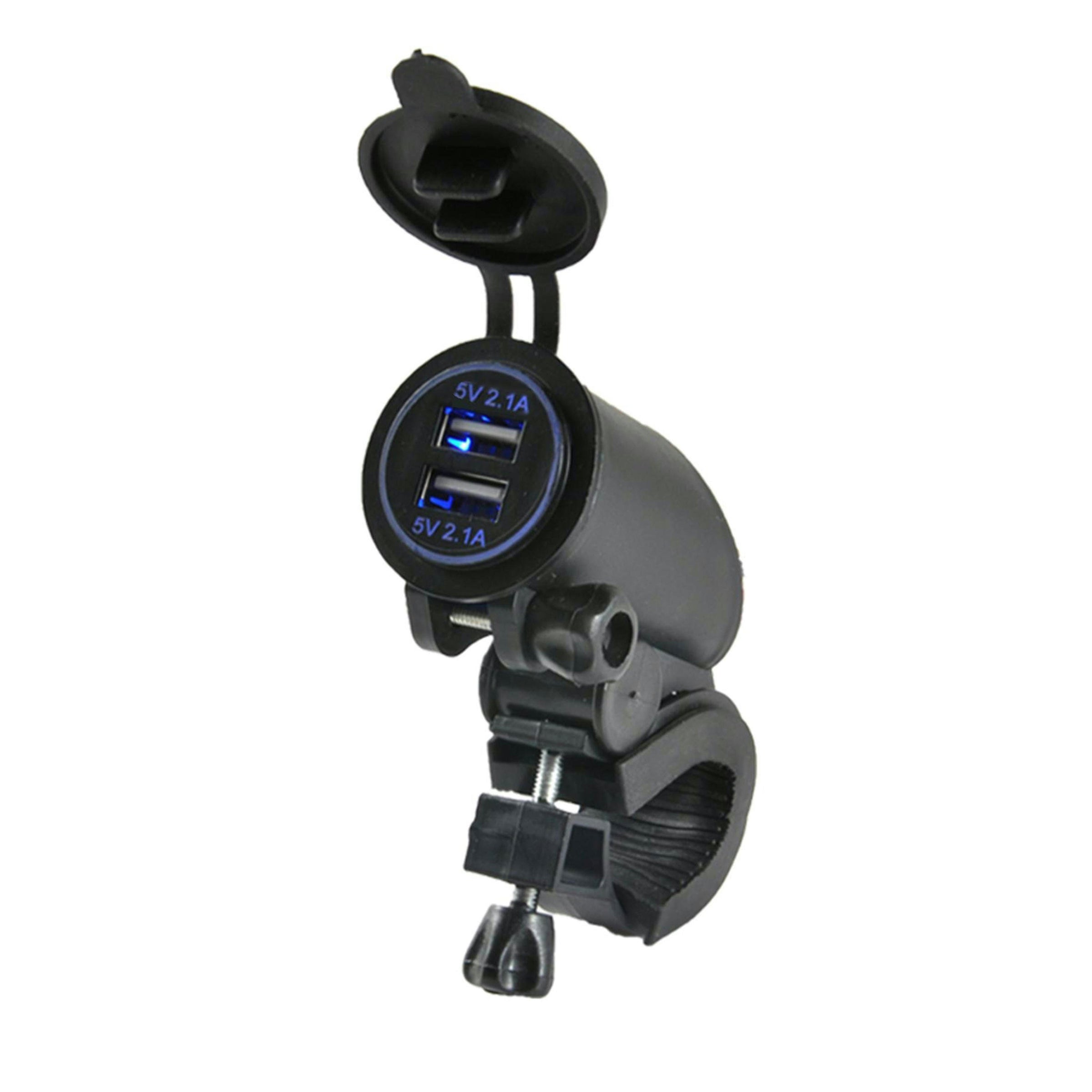

2 port specification USB charging

A USB port is installed around the handle and can be used to charge a smartphone or power the navigation system.

Wiring with a fuse also prevents overcurrent.

<Installation method>
Remove the power wires from the positive and negative ends.

The length of the wire is approximately 130cm.

*Caution: When connecting to the accessory power supply, pay attention to other wiring and use connection terminals (sold separately) as necessary.

■Handle mount■

Use the included rubber spacer to adjust it according to the handle diameter and fix it so that it does not move.

■ When embedded in the vehicle body ■
Drill a hole approximately 29mm in diameter on the vehicle body side.

After installing the main unit, secure it with a ring from the back side.

*We recommend that you have a professional perform the drilling process.

We cannot accept any responsibility or warranty for damage, malfunctions, accidents, etc. caused by drilling.

<Precautions for use>
・This product is for 12V only.
・Please be sure to close the cap when not in use.
・This product has a simple waterproof specification. If water enters the product, it may cause damage to the product and vehicle electrical equipment.

・We cannot provide compensation for connected equipment.

Model No.: DEF-UC2

JAN CODE
DEF-UC2: 4527625112285
